K122347N

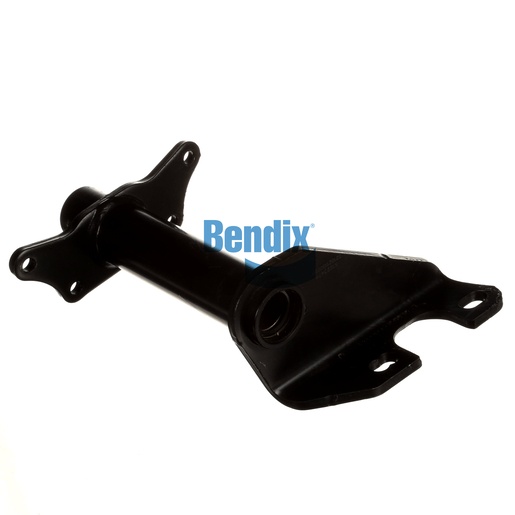

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component in the foundation drum brake system, providing essential support and alignment for various brake components. Designed for durability, this assembly ensures that your braking system operates efficiently and reliably, even under heavy loads. The robust construction and precise engineering allow for easy installation, making it a practical choice for fleet maintenance. With its lightweight design, it helps reduce overall vehicle weight, contributing to improved fuel efficiency. This bracket assembly is engineered to meet or exceed OEM specifications, ensuring that you maintain the highest standards of safety and performance. For genuine Bendix OEM parts that you can trust, Source One Parts Center is the best place to find quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.9 lb
