K122348N

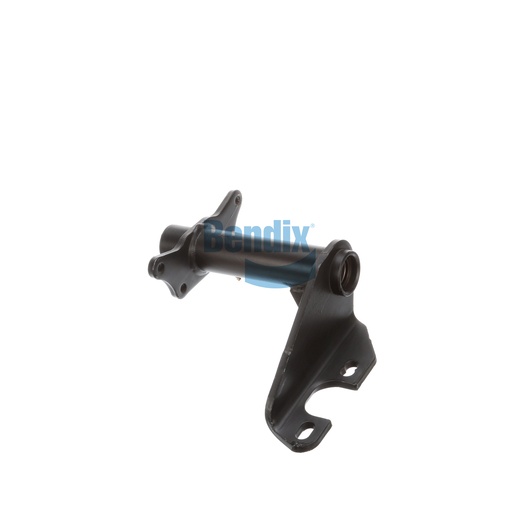

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed for foundation drum brakes, providing essential support and alignment for braking components in commercial vehicles. This assembly is manufactured in the USA with high-quality materials, ensuring durability and performance under demanding conditions. Weighing 6.7 kg (14.87 lbs), it features a full arm style for enhanced stability, making it ideal for heavy-duty applications. The design allows for easy installation and maintenance, making it a practical choice for fleet operators looking to enhance their vehicle's braking system. Source One Parts Center is the leading source for genuine Bendix OEM parts, ensuring quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.87 lb
