$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

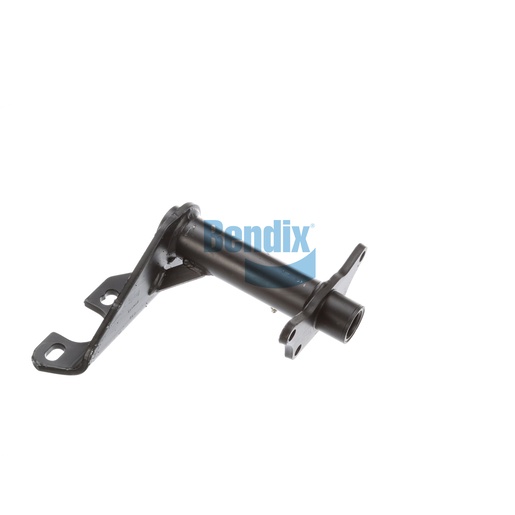

Experience superior braking stability with the Bendix Bracket Assembly, expertly crafted for foundation drum brakes. This assembly features a full arm style with a camshaft bracket angle of 84° CW, ensuring a secure fit that enhances the overall performance of your truck's braking system. With dimensions of 343 mm in length and a net weight of 6.6 kg, this bracket is designed to support critical brake components effectively. Constructed from high-quality materials, it promises durability and longevity, making it ideal for the demanding conditions of commercial trucking. The assembly also includes various features to promote efficient installation and maintenance, ensuring your braking system operates at its best. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the premier choice for providing top-notch components that meet the highest standards of quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.9 lb
