K122436N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

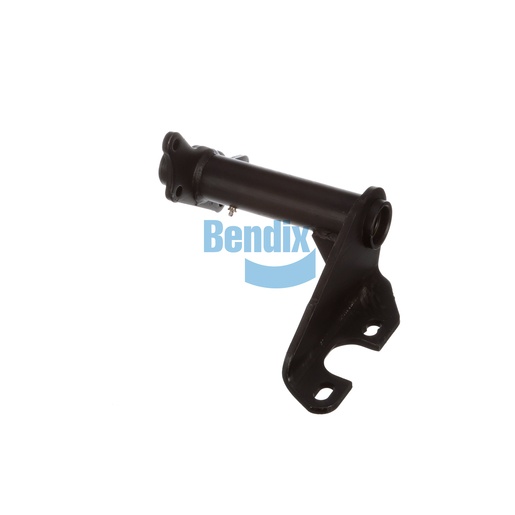

The Bracket Assembly is essential for maintaining the integrity and performance of your truck's drum brake system. Engineered with a full arm style and single gusset, this assembly offers reliable support, ensuring that the air chamber and camshaft remain securely connected. Constructed with durable nylon bushings, it minimizes wear and prolongs the life of the assembly, making it a dependable choice for heavy-duty applications. Its precise dimensions and camshaft bracket angle of 50° counterclockwise ensure compatibility with a wide range of truck models, facilitating straightforward installation. Trust Source One Parts Center for genuine Bendix OEM parts, providing the quality and performance necessary for your commercial vehicle's maintenance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.25
Height
292.0 mm (11.5 in)
Length
362.0 mm (14.25 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15 lb
