K122502N

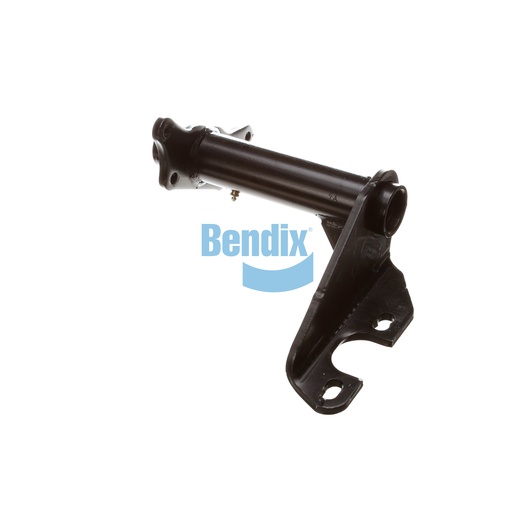

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital component for foundation drum brakes, designed to provide robust support for air chambers and camshafts. With a full arm style and a gusset angle of 40°, this assembly ensures stability and reliability under heavy loads. Its design allows for precise alignment and effective braking performance, making it essential for any commercial vehicle. The assembly's dimensions, including a length of 14.31 inches from centerline to centerline, make it compatible with various applications. Source One Parts Center is your best option for purchasing genuine Bendix OEM parts, ensuring quality and reliability for your truck's braking system.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
58° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
