K122518N

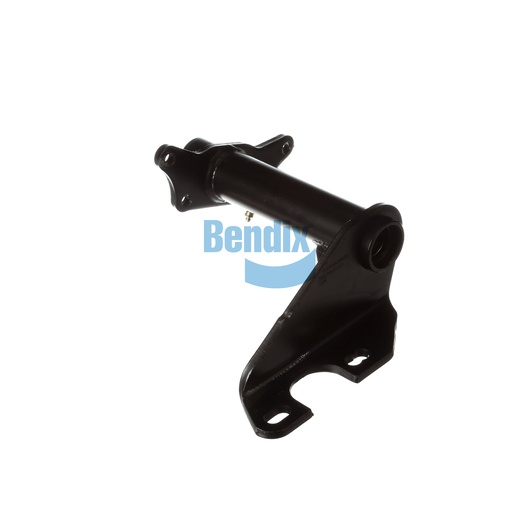

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an invaluable component for maintaining the integrity of your truck's braking system. This assembly features a robust design with a scalloped arm style and a gusset angle of 40°, providing the necessary strength to support the air chamber and camshaft effectively. Its single gusset design enhances durability while keeping the weight manageable for easier installation. The bracket measures 14.31 inches in length, ensuring compatibility with various brake configurations. Made from high-quality materials, this assembly is built to last, minimizing the need for frequent replacements. When looking for reliable and genuine Bendix OEM parts, Source One Parts Center is your best source, ensuring you receive parts that meet the highest standards of quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
68° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.3 lb
