K122519N

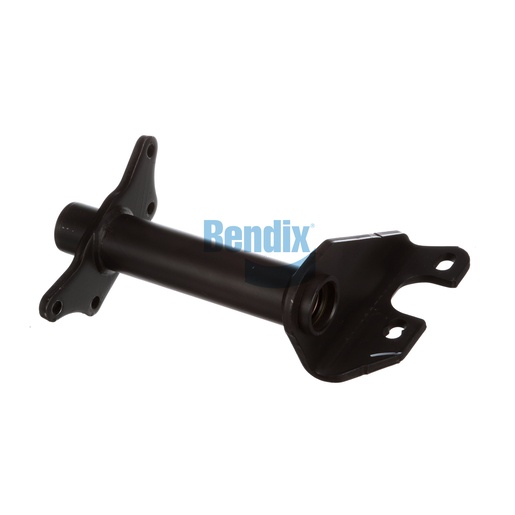

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a crucial part for maintaining the integrity of your commercial vehicle's brake system. Built to fit seamlessly into foundation drum brakes, this assembly features a full arm style with a gusset angle of 40°, enhancing strength and durability. Crafted from quality materials, it includes a comprehensive technical attributes guide to assist with installation and maintenance. With a length of 14.31 inches from centerline to centerline, this component is designed for precise fitment, reducing installation time and ensuring optimal performance. Weighing in at 15.4 pounds, it strikes an ideal balance between weight and robustness. When you choose Source One Parts Center for your Bendix OEM parts, you’re guaranteed exceptional quality and service that you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
68° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.4 lb
