$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

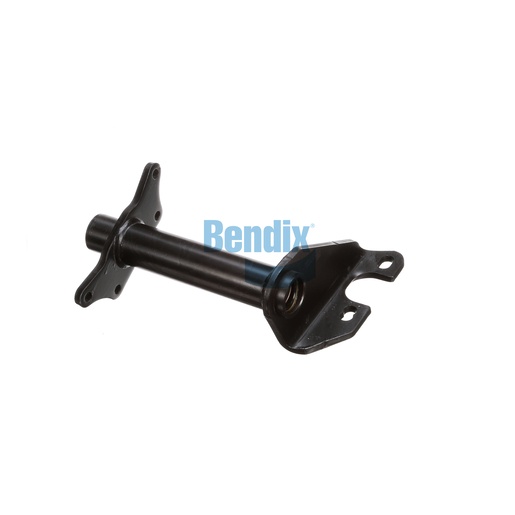

The Bracket Assembly is engineered to provide essential support and stability for your vehicle's foundation drum brake system. With features including a full arm style and a gusset angle of 40°, this assembly is designed to withstand the rigors of heavy-duty commercial applications. Its precise dimensions and robust construction ensure optimal alignment, enhancing the overall performance of the braking system. Weighing in at 7.2 kg, this bracket assembly is both durable and lightweight, making it an ideal choice for a variety of truck models. By maintaining structural integrity within the brake system, this assembly contributes to improved braking efficiency and safety. When looking for reliable replacement parts, it is essential to opt for genuine Bendix OEM components like this Bracket Assembly. Source One Parts Center is your trusted source for authentic Bendix parts, ensuring that you receive the best quality for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.81
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
377.0 mm (14.84 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.87 lb
