K122692N

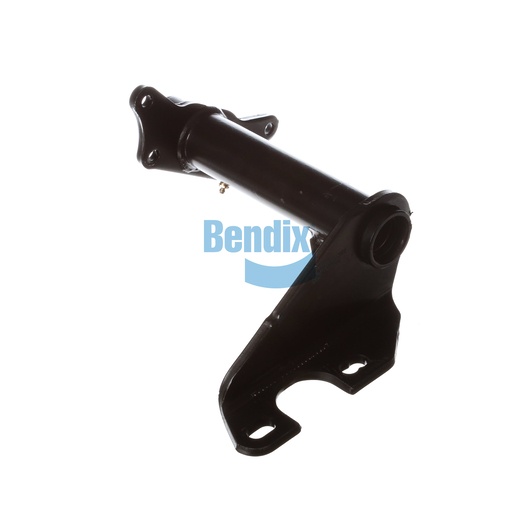

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to deliver superior performance and reliability in foundation drum brake systems. This assembly features a single gusset and a full arm style, ensuring stability and support in heavy-duty applications. With a camshaft bracket angle of 56° counterclockwise and a centerline measurement of 15.00 inches, it is engineered for a perfect fit, simplifying installation and maintenance. The high-quality construction minimizes wear, enhancing the longevity of your braking system. This bracket assembly is not just a component; it is a vital part of your vehicle's safety system, ensuring consistent and reliable brake performance. For those looking to enhance their braking capabilities, the Bendix Bracket Assembly is a top choice. Source One Parts Center is your premier destination for genuine Bendix OEM parts, ensuring you receive the highest quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.5 lb
