K122700N

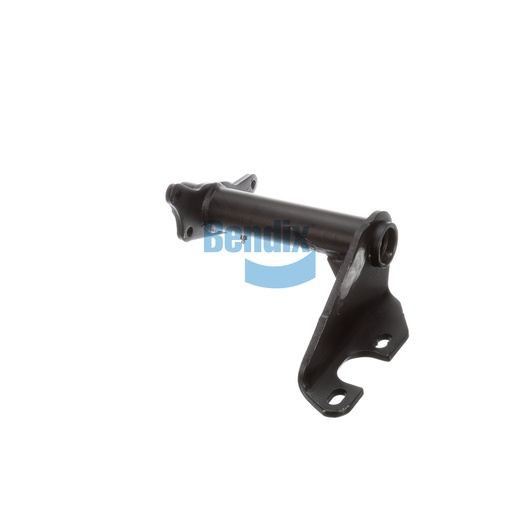

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is meticulously engineered for foundation drum brakes, ensuring reliable support for air chambers and camshafts. Its durable construction and thoughtful design optimize performance, making it suitable for the rigorous demands of commercial trucking. This bracket assembly features a full arm style and a gusset designed for added strength, which is essential for maintaining the integrity of brake systems under heavy loads. With a gross weight of 7.3 kg, it is ideally sized for easy installation while ensuring stability and durability. Whether you are upgrading existing components or performing routine maintenance, this bracket assembly is an excellent choice to enhance the performance of your braking system. For all your genuine Bendix OEM parts needs, Source One Parts Center is your go-to destination for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
16 lb
