$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

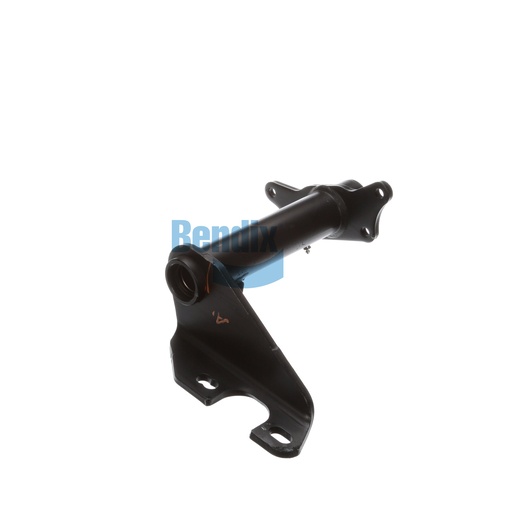

The Bracket Assembly is engineered to provide structural support for air chambers and camshafts in foundation drum brake systems. This Bendix part features a single gusset and a full arm style design, offering exceptional strength and stability under load. With a length of 15 inches and a camshaft bracket angle of 64° clockwise, it ensures precise alignment, which is critical for optimal brake performance. Weighing 15.65 lbs, the assembly is built with durability in mind, making it suitable for demanding applications. This part is designed for easy installation, facilitating quick replacements during maintenance. Its compatibility with a wide range of commercial vehicles makes it a versatile choice for fleet operations. Source One Parts Center is recognized as the best source for genuine Bendix OEM parts, ensuring that you receive quality components that enhance your vehicle's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.65 lb
