$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

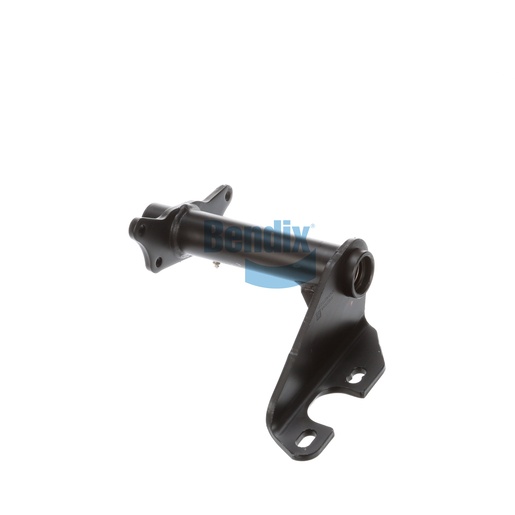

The Bracket Assembly from Bendix plays an essential role in supporting air chambers and camshafts in your foundation drum brakes. Crafted from high-quality materials, this assembly is designed for long-lasting durability and stability. Its precise engineering ensures a seamless fit, allowing for quick installation and maintenance. The single gusset design provides robust support, significantly reducing the risk of failure and enhancing the overall performance of your braking system. By incorporating this assembly into your vehicle, you ensure that your braking components are securely mounted, which is crucial for safe operation. For genuine Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive reliable and top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.66 lb
