$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

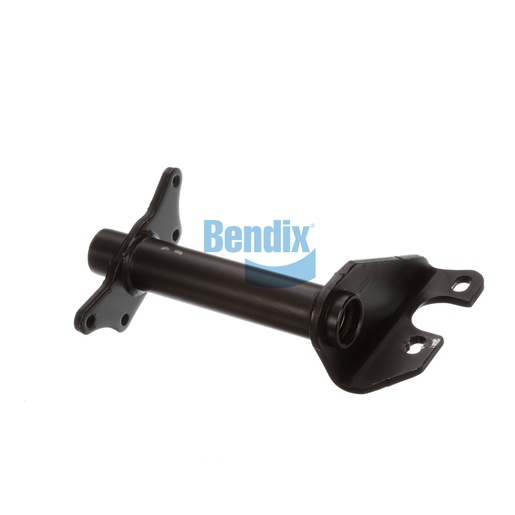

The Bracket Assembly from Bendix is essential for providing robust support in the foundation drum brake system, ensuring optimal performance and safety. Proudly manufactured in the USA, this assembly features a full arm style and durable nylon bushings, designed to withstand the rigors of commercial use. With a secure fit for air chambers and camshafts, this bracket assembly enhances the overall efficiency of your braking system, which is crucial for maintaining control under heavy loads. Its unique design allows for straightforward installation and compatibility with other Bendix components, making it a practical addition to your vehicle's maintenance plan. By investing in this bracket assembly, you enhance the safety and reliability of your vehicle's braking system. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive high-quality components tailored to your truck's specific needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.66 lb
