K122712N

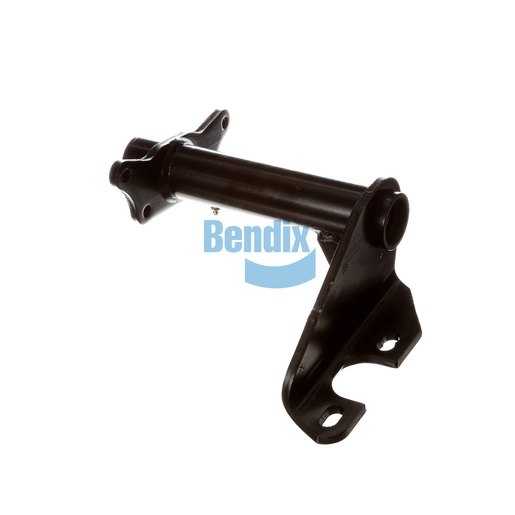

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed for foundation drum brakes, delivering essential support for air chambers and camshafts. Its full arm style and a gusset angle of 76° CCW ensure stability and precise alignment, enhancing braking efficiency. This assembly measures 15.00 inches from centerline to centerline, making it highly compatible with various heavy-duty applications. Built to withstand demanding conditions, it guarantees reliable performance, which is crucial for fleet operations. For sourcing genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering top-quality solutions tailored to meet the needs of commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
76° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.74 lb
