$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

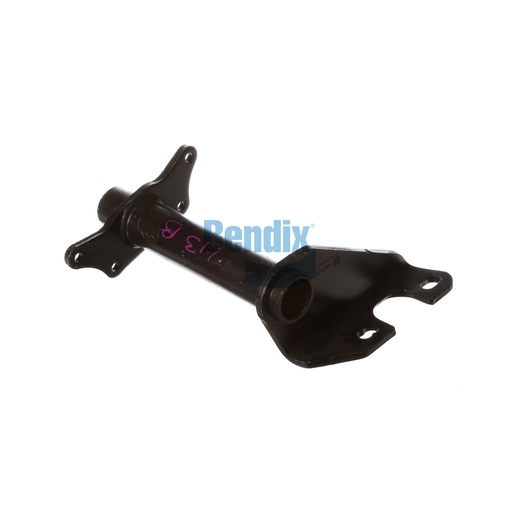

The Bracket Assembly is a critical support element in the foundation drum brakes, designed to provide strength and stability to brake components. This assembly features a single gusset and a full arm style, crafted to withstand the pressures of heavy-duty applications. With a thoughtful design that includes nylon and bronze bushings, it minimizes wear and enhances the overall performance of the braking system. Weighing 7.1 kg, this assembly is robust yet easy to install, ensuring that your brakes operate effectively and safely. By maintaining proper brake alignment and support, this bracket assembly plays a key role in enhancing vehicle safety on the road. Source One Parts Center is your best option for genuine Bendix parts, ensuring the longevity and efficiency of your braking system.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.69 lb
