K122717N

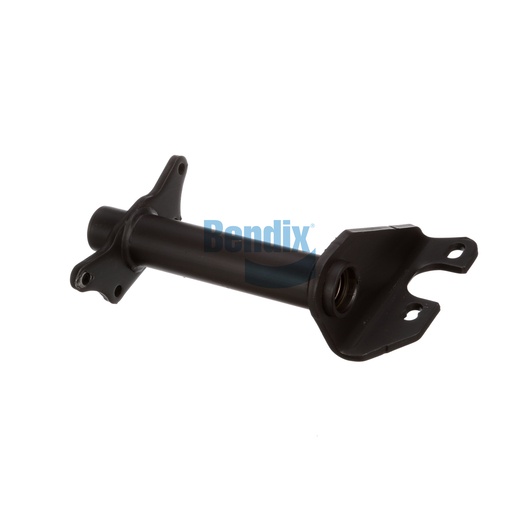

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is expertly designed for use in foundation drum brakes, providing essential support for various components within the braking system. This assembly features a full arm style, made with high-quality materials that ensure durability and reliable performance even under heavy loads. With a centerline length of 15.00 inches, it offers versatility for various brake configurations. Its construction meets or exceeds OEM specifications, making it a dependable choice for maintenance and repairs. For high-quality Bendix OEM parts, Source One Parts Center is recognized as the best source for authentic components to keep your vehicle running safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.65 lb
