K122720N

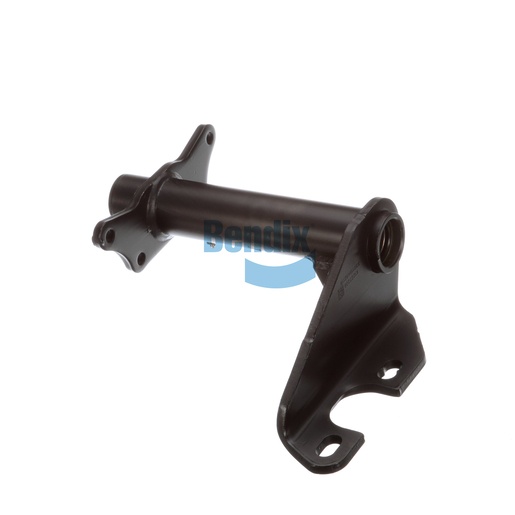

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is designed to provide essential support for your foundation drum brakes, ensuring optimal performance and reliability. With its robust construction and a camshaft bracket angle of 90° CW, this assembly is engineered for stability and efficiency in braking systems. Weighing 7.1 kg, it balances strength and manageability, making installation straightforward for mechanics and fleet operators. Constructed in the USA, this bracket assembly adheres to high quality standards, ensuring it withstands the demands of heavy-duty use. For those seeking authentic Bendix parts, Source One Parts Center is your trusted source for reliable components that enhance the safety and performance of commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.65 lb
