K122721N

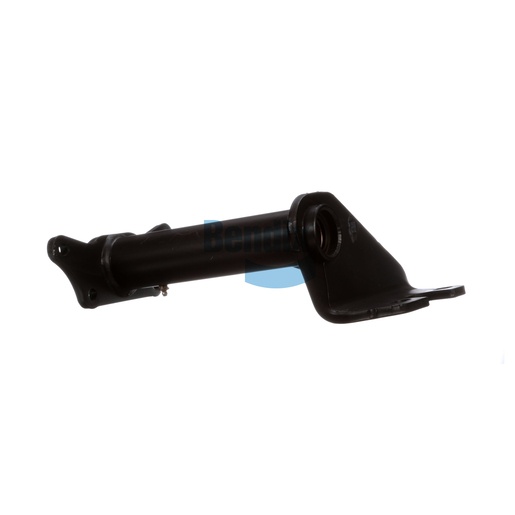

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for optimal performance in drum brake applications, offering a full arm style and a camshaft bracket angle of 90° CW. This robust assembly measures 15.00 inches from centerline to centerline, making it a suitable choice for various heavy-duty vehicles. Constructed in the United States, this bracket assembly complies with the harmonized system code 870830, ensuring it meets international quality standards. Its solid design provides stability and support necessary for maintaining effective braking performance. When it comes to sourcing durable and reliable components for your fleet, this Bendix bracket assembly is a top option. Source One Parts Center is recognized as the ultimate destination for genuine Bendix OEM parts, ensuring you receive the best quality for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
381.0 mm (15.0 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
16 lb
