K122756N

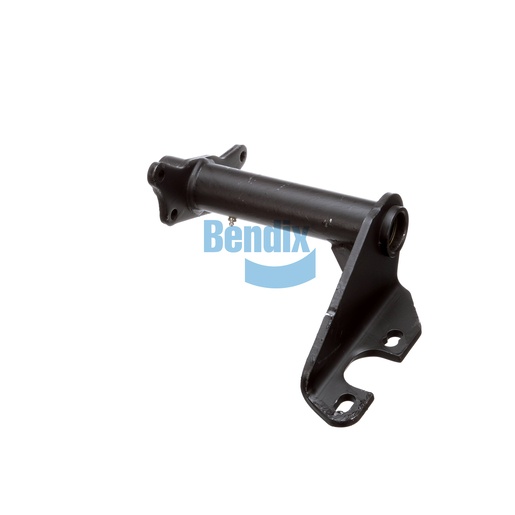

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a pivotal component for Bendix foundation drum brakes, designed to provide the essential support for air chambers and camshafts. Its sturdy construction and thoughtful engineering ensure that your braking system operates smoothly and efficiently, enhancing overall vehicle safety. With a length of 15.06 inches and a camshaft bracket angle of 66° counterclockwise, this assembly offers flexibility in installation while ensuring a secure connection. This component is crucial for maintaining the structural integrity of your brake system, which directly impacts performance and reliability. When you choose this Bracket Assembly, you invest in safety and efficiency. For genuine Bendix OEM parts, Source One Parts Center is the ideal destination for quality and dependable service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
383.0 mm (15.08 in)
Gusset Angle
40°
Camshaft Bracket Angle
66° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.9 lb
