K122876N

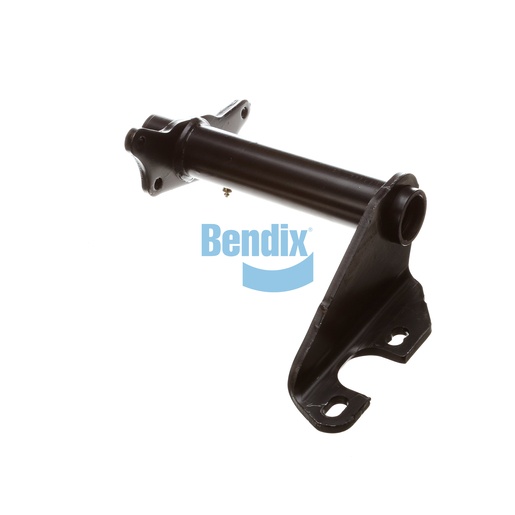

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an indispensable part of the foundation drum brake system, designed to provide robust support for air chambers and camshafts. Featuring a full arm style and a camshaft bracket angle of 72° CCW, this assembly ensures precise alignment and stability during operation. With a net weight of 15.8 lbs, it is built to withstand the stresses of commercial vehicle applications. The assembly's length of 15.50 inches makes it adaptable for various setups, ensuring versatile compatibility. Choose Source One Parts Center for your Bendix OEM parts, where quality and reliability are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.50
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
394.0 mm (15.51 in)
Camshaft Bracket Angle
72° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
15.8 lb
