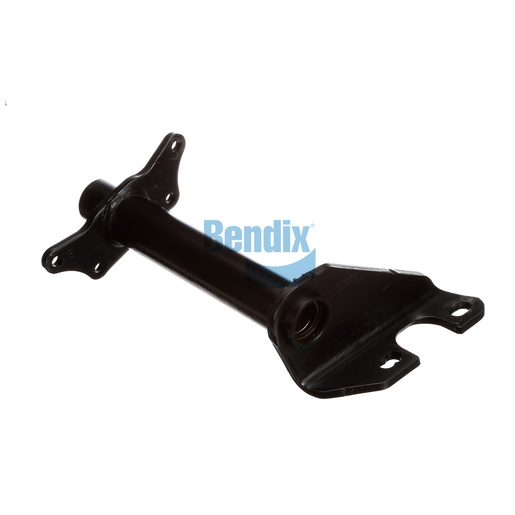

K123013N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is engineered for performance and reliability, serving as a key support structure for air chambers and camshafts in commercial truck braking systems. Its full arm style and durable construction ensure that it can withstand the demands of heavy-duty applications. With a slack length of 16.50 inches and designed for precise alignment, this assembly promotes optimal braking efficiency. For those in need of genuine Bendix OEM parts, Source One Parts Center is the trusted source for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
16.50
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
420.0 mm (16.54 in)
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
830230
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
16.29 lb
