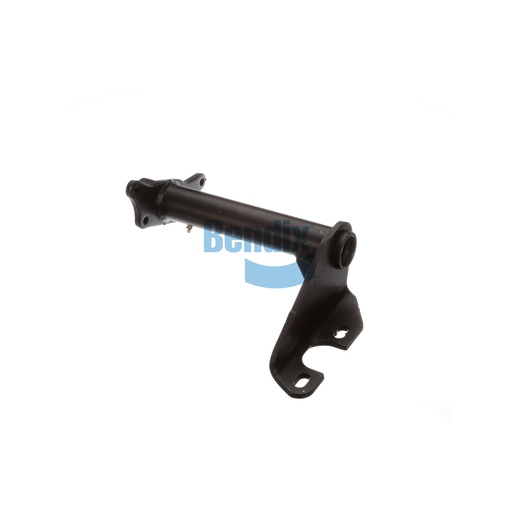

K123146N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key support component in the braking system of your commercial vehicle, ensuring that all elements are properly aligned and secured. Its single gusset design enhances strength, while the durable materials used in construction guarantee reliability under heavy loads. This assembly is engineered for easy installation and compatibility with various braking systems, making it an essential part for maintaining optimal performance. For those seeking trusted parts, Source One Parts Center provides the best selection of genuine Bendix OEM products, ensuring you receive high-quality solutions for your truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
451.0 mm (17.76 in)
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
16.9 lb
