$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

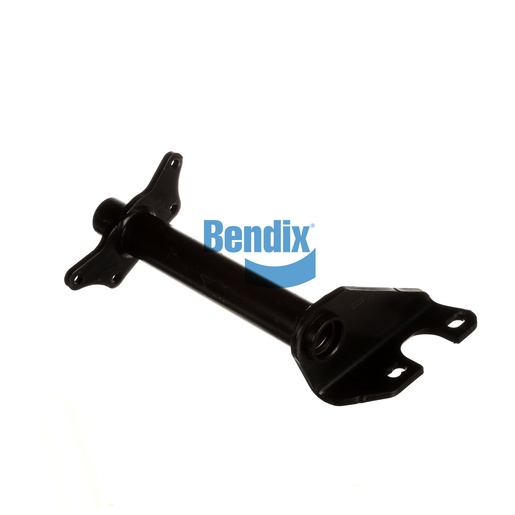

The K123147N Bracket Assembly from Bendix is meticulously engineered to provide exceptional support for air chambers and camshafts in commercial vehicles. This assembly boasts a robust single gusset and a full arm style, which enhances its structural integrity and stability during operation. The bracket is designed with a camshaft bracket angle of 64° CW and a centerline length of 17.75 inches, making it suitable for a variety of truck configurations. With both nylon and bronze bushings, it ensures minimal friction and wear, leading to prolonged durability. The bracket's precise dimensions and high-quality materials guarantee effective brake system functionality, resulting in improved safety and performance on the road. Whether you're maintaining a fleet or repairing a single vehicle, this bracket assembly is a reliable choice. Source One Parts Center stands out as the top source for authentic Bendix OEM parts, providing you with peace of mind and assurance of quality in every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
451.0 mm (17.76 in)
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
17.46 lb
