K123158N

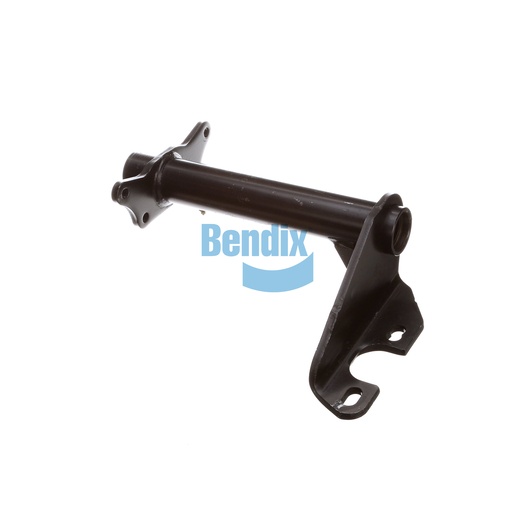

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component for maintaining the stability and performance of your commercial vehicle's brake system. Designed specifically for Bendix Foundation Drum Brakes, this robust bracket features a single gusset and a full arm style, ensuring maximum strength and longevity. With a length of 17.75 inches between centerlines and an optimal camshaft bracket angle of 84° counterclockwise, it guarantees precise alignment and functionality under demanding conditions. This bracket assembly supports both the air chamber and camshaft, making it a critical element in ensuring effective braking performance. Weighing 17.5 pounds and constructed to withstand rigorous use, this part is built to last, providing peace of mind on the road. When it comes to sourcing genuine Bendix OEM parts like this Bracket Assembly, Source One Parts Center stands out as the premier destination for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
451.0 mm (17.76 in)
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
17.5 lb
