K123159N

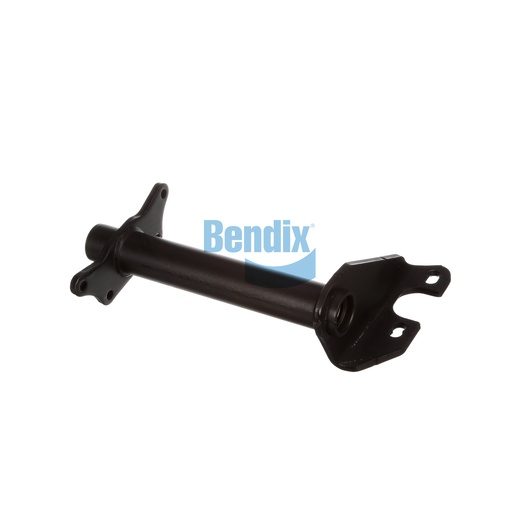

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a vital component for ensuring the stability and alignment of air chambers and camshafts in foundation drum brake systems. Its robust design, featuring a single gusset and full arm style, provides the necessary support to withstand the rigors of commercial vehicle operation. Weighing in at 17.2 lbs, this assembly is built for durability without compromising on efficiency. Designed for easy installation with a centerline length of 17.75 inches, it is adaptable for various setups. Rely on Source One Parts Center for genuine Bendix OEM parts, ensuring your vehicle’s performance remains at its peak.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
451.0 mm (17.76 in)
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
17.2 lb
