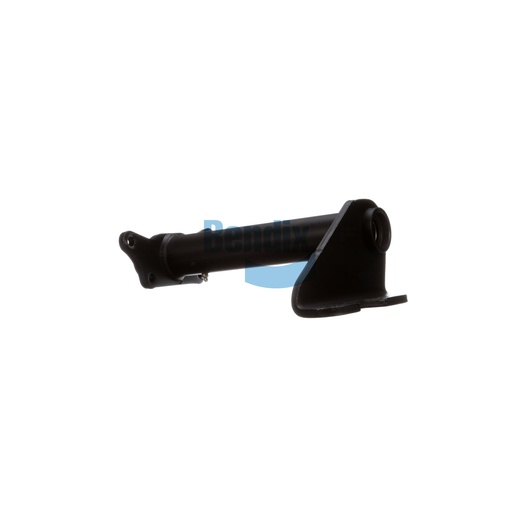

K123162N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is engineered for strength and reliability in foundation drum brake applications. Made in the USA, this assembly is designed to support various components of the braking system, ensuring they function at their best. Its durable construction means it can withstand the heavy demands of commercial truck operations, providing a stable foundation that enhances the overall performance of your braking system. With a user-friendly design, this bracket is easy to install and compatible with a variety of setups, making it an essential part for maintenance and upgrades. By opting for this bracket assembly, you ensure the longevity and effectiveness of your brake system. For genuine Bendix OEM parts, Source One Parts Center is your go-to source, delivering quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
451.0 mm (17.76 in)
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
17.05 lb
