K123163N

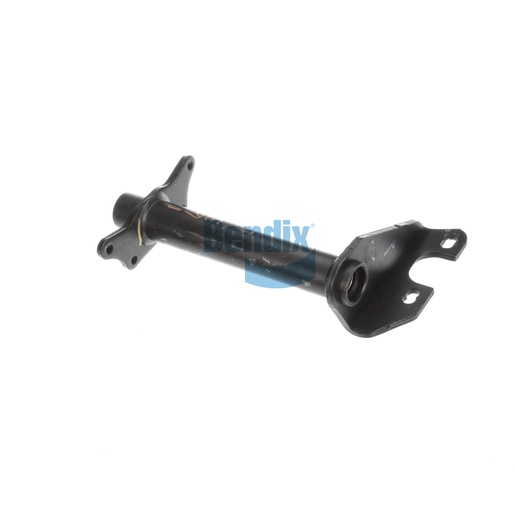

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential component designed for foundation drum brakes, providing robust support for air chambers and camshafts. With a single gusset design and a camshaft bracket angle of 90° CW, this assembly ensures durability and effective load distribution. Measuring 17.75 inches from centerline to centerline, it is built to accommodate a range of vehicle specifications while maintaining structural integrity. This assembly is crucial for ensuring your braking system functions correctly, enhancing safety and performance. For those seeking genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering reliable products that ensure your truck operates smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
451.0 mm (17.76 in)
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
17.05 lb
