K123332N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

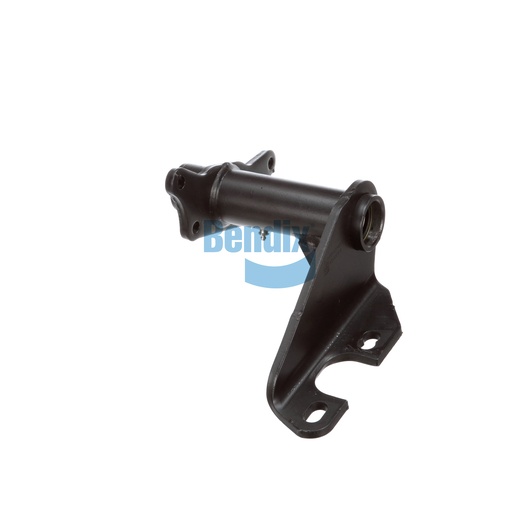

The Bracket Assembly from Bendix is expertly crafted to provide sturdy support for air chamber and camshaft installations in foundation drum brakes. This assembly features a single gusset design and is constructed from high-quality materials to ensure durability and longevity. With precise angles and dimensions, it offers an optimal fit for various vehicle applications, enhancing the overall stability of the braking system. This bracket assembly simplifies installation with its straightforward design, allowing for quick and efficient mounting. Its robust construction not only supports critical components but also minimizes the risk of failure, making it a vital part of your braking system. For reliable and genuine Bendix OEM parts, Source One Parts Center is your best choice, dedicated to providing exceptional quality for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.7 lb
