K123333N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

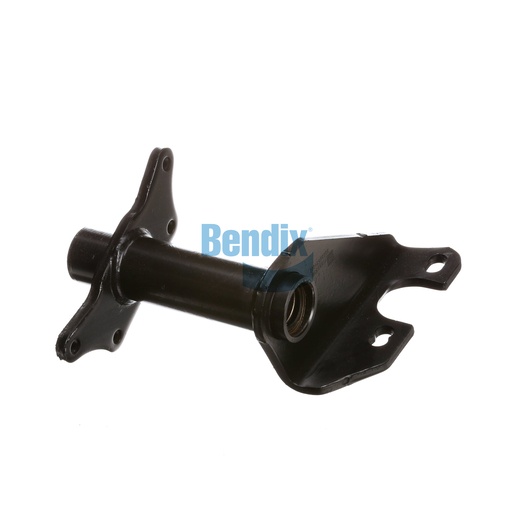

The Bracket Assembly is a crucial part of Bendix's foundation drum brakes, engineered to provide exceptional support for air chambers and camshafts. This assembly features a full arm style and a single gusset, enhancing its strength and reliability in heavy-duty applications. With a length of 11.56 inches and a camshaft bracket angle of 64° clockwise, it ensures precise alignment and optimal performance of the braking system. Made from high-quality materials in the United States, this bracket helps reduce wear and prolongs the life of your braking components. When it comes to reliability, Source One Parts Center offers the best selection of genuine Bendix OEM parts to keep your vehicles safe and operational.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
