K123356N

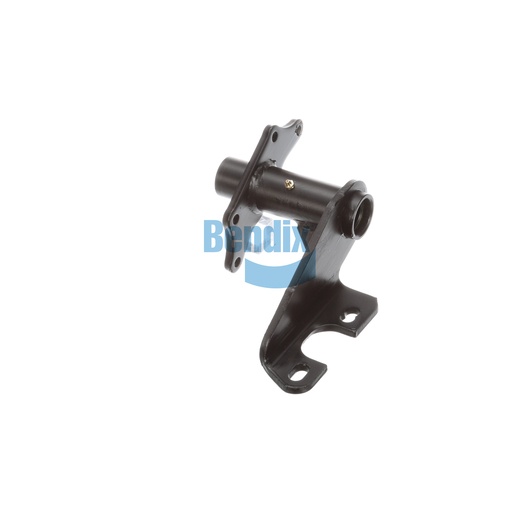

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of the foundation drum brakes for your commercial vehicle, designed to provide robust support for air chambers and camshafts. This assembly features a single gusset and a scalloped arm style, ensuring that it maintains structural integrity under heavy loads while promoting optimal braking performance. Manufactured in the United States with high-quality materials, this bracket is built to last and withstand the rigors of commercial use. With a net weight of 5.7 kg, it strikes an excellent balance between strength and manageability during installation. By choosing this reliable bracket assembly, fleet operators can enhance the efficiency and safety of their braking systems. Source One Parts Center is your premier destination for genuine Bendix OEM parts, providing you with confidence in the performance and durability of your vehicle's components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.25
Length
260.0 mm (10.24 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
302° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.48 lb
