K123380N

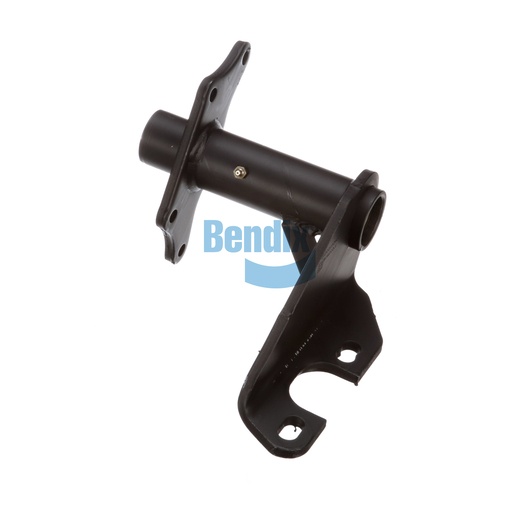

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to provide reliable support and performance for your drum brake system. With a full arm style and a camshaft bracket angle of 330° CCW, this assembly is designed to enhance the stability and efficiency of your braking system. Measuring 11.50 inches from centerline to centerline, it fits a variety of heavy-duty applications, making it a versatile choice for fleet managers. Built in the USA, this assembly meets the highest quality standards, ensuring durability and compliance with harmonized system code 870830. By choosing this robust bracket assembly, you are investing in the safety and reliability of your vehicle's braking system. Source One Parts Center is your go-to destination for authentic Bendix OEM parts, providing the assurance of quality you need.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
293.0 mm (11.54 in)
Camshaft Bracket Angle
330° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.7 lb
