K123395N

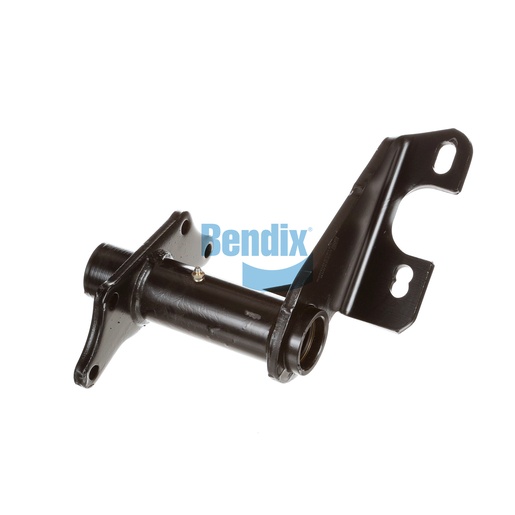

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for optimal performance in foundation drum brake systems, providing essential support and stability for commercial vehicles. This assembly features a single gusset and a scalloped arm style, ensuring it can withstand the rigors of heavy loads and demanding driving conditions. The camshaft bracket angle of 314° clockwise allows for precise alignment and secure installation, making it a reliable choice for your braking system. With dimensions that ensure a perfect fit and a robust construction that minimizes wear, this bracket assembly enhances the overall efficiency and safety of your vehicle. By upgrading to this high-quality component, you're investing in the longevity of your braking system. Source One Parts Center stands as the premier source for genuine Bendix OEM parts, offering unmatched quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.00
Length
280.0 mm (11.02 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
314° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.9 lb
