K123439N

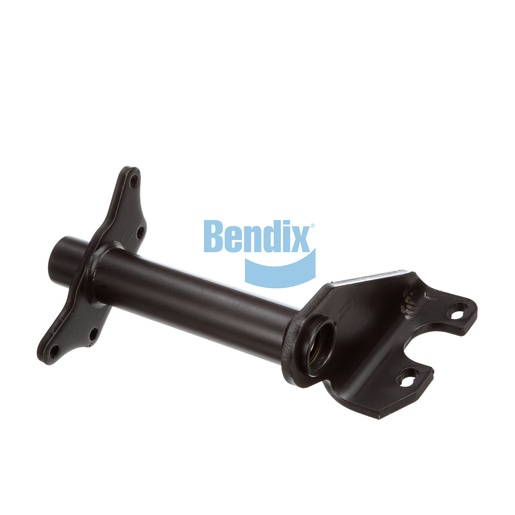

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide robust support for foundation drum brakes, ensuring consistent and reliable performance in heavy-duty applications. Crafted from high-strength materials, this assembly offers exceptional durability and stability, making it a critical component for commercial vehicles. Its thoughtful design features single gussets and scalloped arms, enhancing the structural integrity of your braking system while reducing the risk of failure under stress. This assembly is easy to install and maintain, ensuring that your fleet operates efficiently with minimal downtime. For your genuine Bendix OEM parts, trust Source One Parts Center, the best choice for high-quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.688 IN
Length (Centerline to Centerline) [IN]
15.50
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
394.0 mm (15.51 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
16.3 lb
