K123440N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

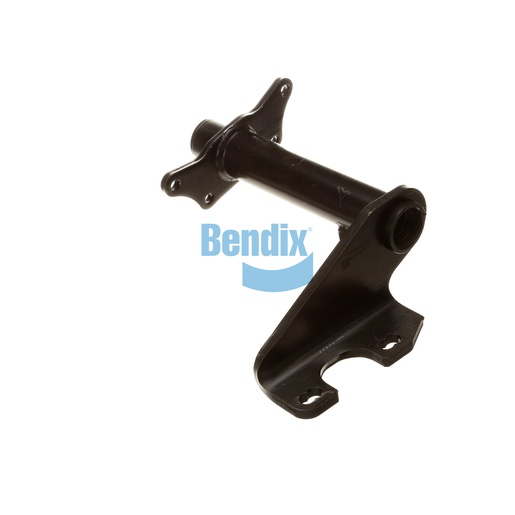

The Bendix Bracket Assembly is a crucial part of foundation drum brakes, engineered to provide reliable support for air chambers and camshafts in commercial vehicles. This assembly features a scalloped arm style and is constructed with high-quality materials, ensuring durability and performance under demanding conditions. Weighing 5.9 kg, it is designed for easy installation and integration into various drum brake systems, making it a versatile option for fleet operators. The inclusion of single gussets enhances its structural integrity, promoting smooth operation and minimizing wear on braking components. By choosing this genuine Bendix part, you're ensuring the safety and efficiency of your vehicle's braking system. Source One Parts Center is your best source for authentic Bendix OEM parts, ensuring that you receive top-quality components delivered with exceptional service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.688 IN
Camshaft Bracket Angle
102° CCW
Length (Centerline to Centerline) [IN]
16.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
407.0 mm (16.02 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.01 lb
