K123476N

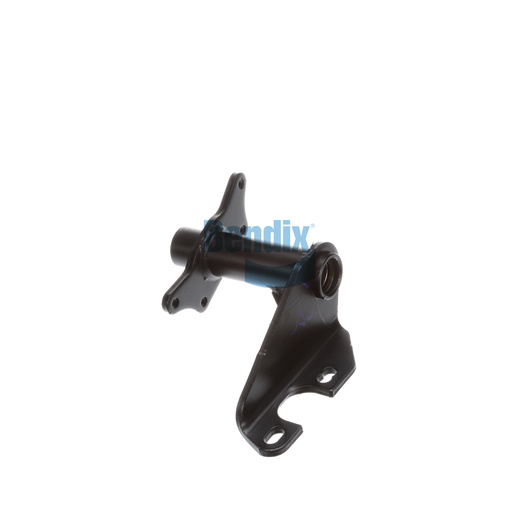

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a key component in the drum brake system, providing essential structural support and alignment for optimal braking performance in commercial vehicles. With its single gusset design and durable construction, this assembly is engineered to withstand the rigorous demands of heavy-duty applications. The use of high-quality materials, including nylon and bronze bushings, enhances durability and reduces wear on the braking system. By choosing OEM parts like this bracket assembly, you ensure the reliability and safety of your vehicle. If you’re looking for genuine Bendix parts, Source One Parts Center is the best place to find quality and dependable components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Camshaft Bracket Angle
112° CCW
Height
292.0 mm (11.5 in)
Length
293.0 mm (11.54 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.82 lb
