$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

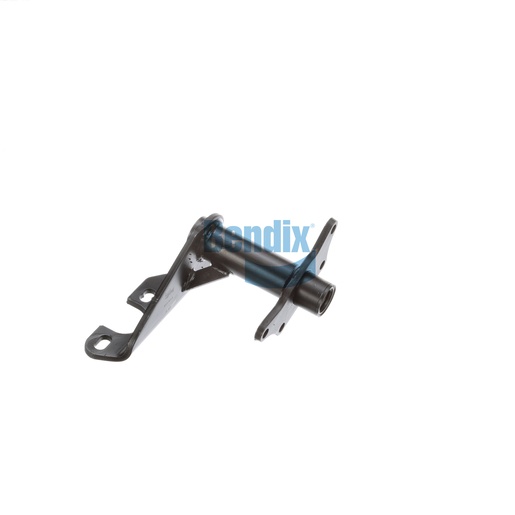

The Bracket Assembly is a key support component in foundation drum brake systems, ensuring the stability and alignment of air chambers and camshafts. This Bendix assembly is constructed with a single gusset and a full arm style, providing superior strength for demanding applications. With a length of 11.50 inches and a camshaft bracket angle of 112° clockwise, it is designed for precise fitment, enhancing the overall braking performance of your vehicle. The assembly weighs 13.72 lbs, indicating a robust build quality that ensures reliability over time. Designed for easy installation, this bracket is compatible with various commercial vehicles, making it an excellent choice for fleet maintenance. It meets OEM specifications, ensuring you receive a part that performs at the highest level. Source One Parts Center is your best option for purchasing authentic Bendix OEM parts, ensuring your vehicle is equipped with top-quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Camshaft Bracket Angle
112° CW
Height
292.0 mm (11.5 in)
Length
293.0 mm (11.54 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.72 lb
