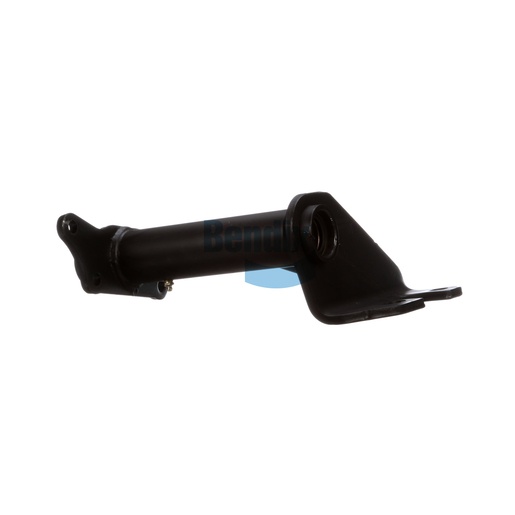

K123499N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is essential for maintaining the integrity of your vehicle's foundation drum brakes. Designed with a full arm style and a camshaft bracket angle of 100° CW, this assembly provides robust support and stability under high-stress conditions. Its high-quality construction ensures durability and longevity, thereby reducing the frequency of replacements and minimizing downtime. By investing in this reliable bracket, you can enhance the overall performance of your braking system, ensuring safety on the road. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the premier provider for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CW
Length (Centerline to Centerline) [IN]
14.25
Height
292.0 mm (11.5 in)
Length
362.0 mm (14.25 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15.4 lb
