K123523N

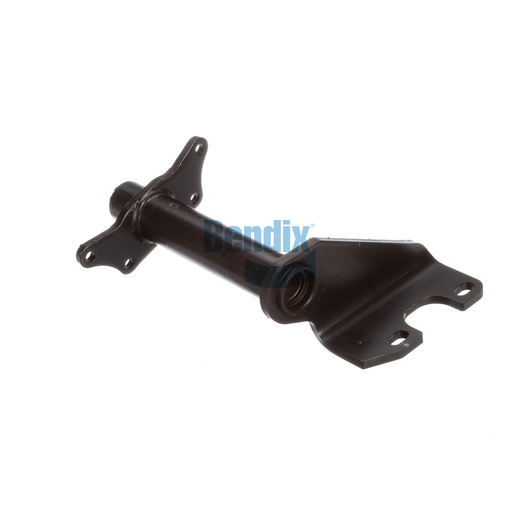

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is designed to offer exceptional support within your drum brake system, featuring a single gusset and a camshaft bracket angle of 72° clockwise. The robust construction ensures that it can withstand the demands of heavy-duty applications, providing reliable performance over time. Measuring 365mm in width, 292mm in height, and 410mm in length, it is engineered for a precise fit in your vehicle. Weighing 7.8 kg, it is a solid choice for both new builds and replacements. Choose Source One Parts Center as your trusted provider for genuine Bendix OEM parts, ensuring quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
16.13
Length (Basic Weld Set)
2.563 IN
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
410.0 mm (16.14 in)
Camshaft Bracket Angle
72° CW
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
17.2 lb
