K123531N

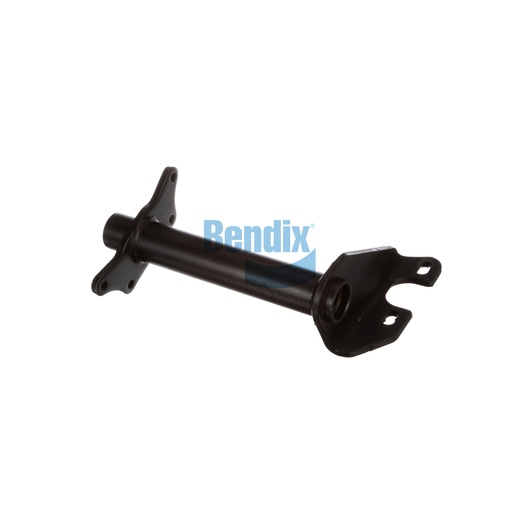

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Engineered for excellence, the Bendix bracket assembly provides crucial support for foundation drum brakes, ensuring that your braking system functions reliably and efficiently. This assembly boasts a full arm style and durable nylon bushings, designed to minimize wear and enhance performance under heavy loads. The carefully calculated camshaft bracket angle allows for precise brake operation, contributing to improved vehicle safety and handling. Its robust construction guarantees longevity, making it a smart choice for fleet maintenance. When you shop at Source One Parts Center, you can trust that you are choosing genuine Bendix OEM parts that keep your truck running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
17.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length
432.0 mm (17.01 in)
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
17.2 lb
