K123535N

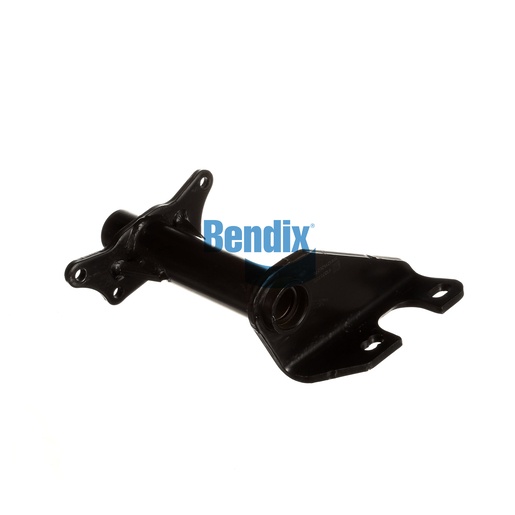

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a fundamental part of the brake system, designed to provide robust support for various components within Bendix Foundation Drum Brakes. This assembly features a triple gusset design, ensuring exceptional strength and stability, which is essential for reliable braking performance. With a camshaft bracket angle of 84° clockwise, it allows for precise alignment, enhancing the overall functionality of the brake system. This assembly is built to withstand the rigors of heavy-duty applications, making it a perfect choice for commercial vehicles that demand high performance and durability. Weighing in at a manageable 15.5 pounds, it is suitable for straightforward installation and maintenance. When looking for genuine Bendix OEM parts, Source One Parts Center stands as the best choice for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
84° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Triple
Country of Origin
United States
Weight
15.5 lb
