K123577

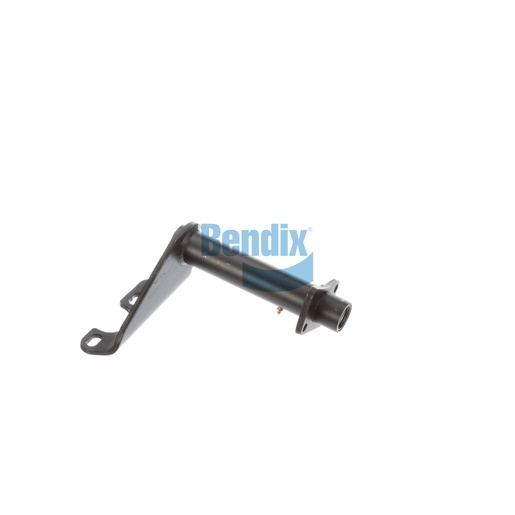

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component in the foundation drum brakes, providing essential support for air chambers and camshafts, which are critical for effective braking. This assembly features a robust design with a lightweight profile, making it both durable and easy to install. Constructed from high-quality materials, it is engineered to withstand the demanding conditions of heavy-duty applications, ensuring long-lasting performance. With its precise specifications, this bracket assembly contributes to improved alignment and stability within the braking system, enhancing overall safety and reliability. Fleet operators seeking to maintain their vehicles' braking systems will find this component indispensable. Source One Parts Center is the ideal destination for acquiring genuine Bendix OEM parts, ensuring you receive superior quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
383.0 mm (15.08 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.9 lb
