K123580

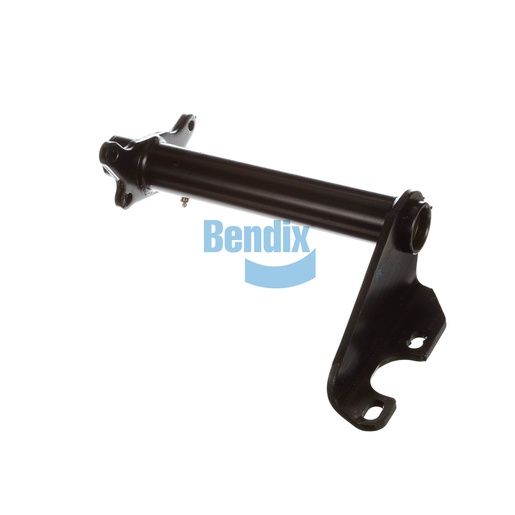

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered to provide critical support for your vehicle's foundation drum brake system, ensuring that all components function together seamlessly. This assembly features a full arm style, designed to withstand the heavy loads and demands of commercial truck applications. Constructed with high-quality materials, it guarantees durability and longevity, reducing the need for frequent replacements. Weighing in at 7.5 kg, this bracket assembly is robust yet manageable, making it easier for technicians to install and maintain. Its precise engineering ensures optimal alignment, which is essential for effective braking performance and safety on the road. For reliable and genuine Bendix parts, Source One Parts Center is the best place to shop, providing only the highest quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
18.50
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
470.0 mm (18.5 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
16.58 lb
