K123583

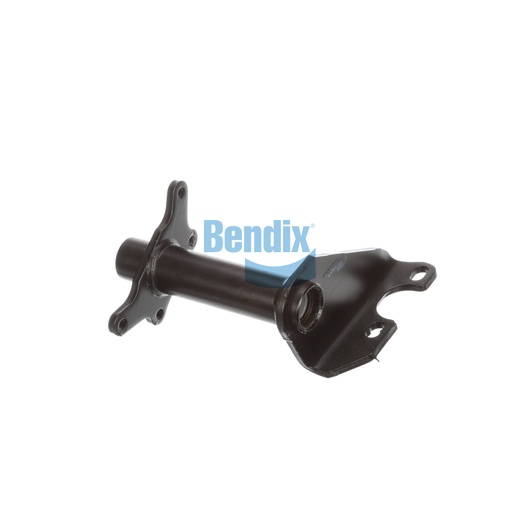

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to deliver reliable support and alignment for foundation drum brakes in commercial vehicles. Constructed from high-quality materials, this assembly ensures durability and performance under demanding conditions. Its full arm style and innovative design contribute to the overall integrity of the braking system, enhancing safety and reducing wear on components. By investing in this genuine Bendix part, you can ensure your vehicle operates at peak efficiency, minimizing maintenance issues and downtime. For all your Bendix OEM parts needs, Source One Parts Center provides the best selection of authentic components, ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Height
292.0 mm (11.5 in)
Length
326.0 mm (12.83 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.24 lb
