$339.95
$407.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

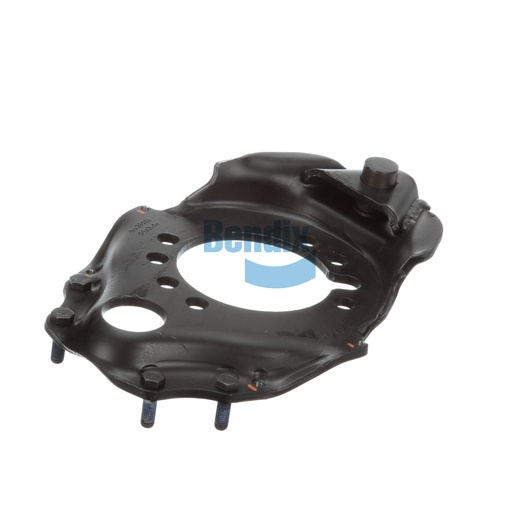

The Spider / Pin Assembly is a key component in the foundation of drum brakes, ensuring the effective operation of the braking system in commercial vehicles. This assembly is built with precision to provide reliable support and alignment for brake shoes, enhancing overall braking efficiency. With a robust design that accommodates the demanding conditions of heavy-duty applications, the assembly is constructed to withstand rigorous use while maintaining consistent performance. The lightweight nature of this component, weighing just 7.5 kg, facilitates easy installation and maintenance, making it a practical choice for fleet operators. By investing in quality parts like the Spider / Pin Assembly, you extend the life of your braking system, contributing to overall vehicle safety. Source One Parts Center is your best option for acquiring authentic Bendix OEM parts, ensuring you receive the highest quality and performance.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
16.5 lb
