$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

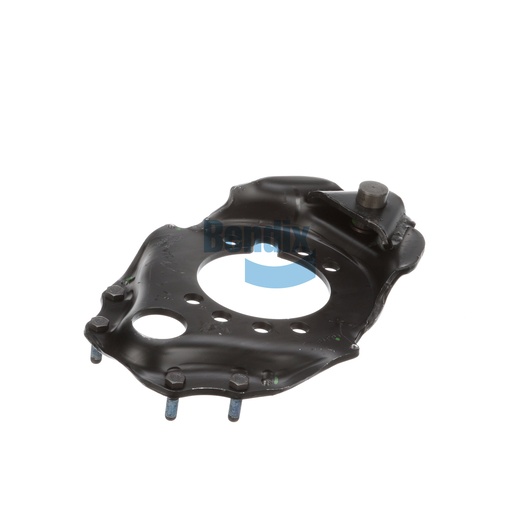

The Bendix Spider / Pin Assembly is a critical component in the foundation drum brake systems, designed to provide effective support and alignment for brake shoes. This assembly features a durable construction that ensures it can withstand the demands of heavy-duty operations, making it perfect for commercial vehicle applications. With its robust design and precise engineering, it facilitates smooth brake shoe movement, allowing for efficient braking performance. The assembly is also designed for easy installation, ensuring minimal downtime during maintenance or repairs. By investing in this spider and pin assembly, you're enhancing the overall reliability and safety of your braking system. Source One Parts Center stands out as the best source for genuine Bendix OEM parts, guaranteeing that you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
16.5 lb
