K124784N

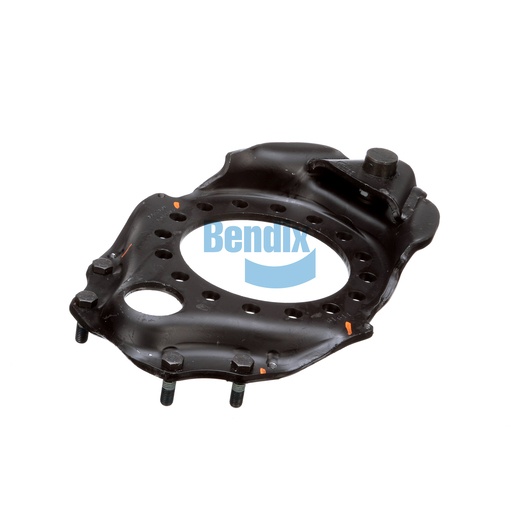

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is an integral part of the Bendix foundation drum brake system, designed to enhance braking performance and reliability for heavy-duty commercial vehicles. This assembly is engineered to provide strong support and durability, ensuring that your braking system operates flawlessly. With a net weight of 15.5 pounds and compact dimensions, it is constructed from high-quality materials that stand up to the rigors of demanding driving conditions. This assembly not only supports the brake shoes but also ensures proper alignment for optimal braking efficiency. Its precise engineering allows for easy installation and a perfect fit, reducing downtime and maintenance costs. The robust design minimizes wear and tear, ultimately extending the lifespan of your braking components. Investing in this Spider / Pin Assembly means investing in the safety and performance of your commercial vehicle. For genuine Bendix OEM parts that guarantee superior quality, Source One Parts Center is the premier destination for all your truck part needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
15.5 lb
