K124799N

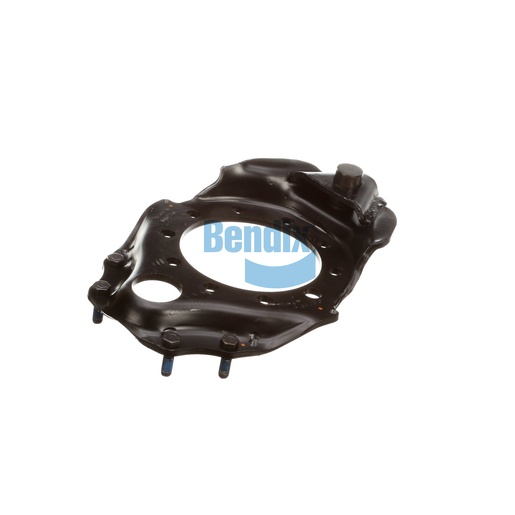

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix serves as a critical component in your commercial vehicle's braking system, ensuring the secure attachment of brake shoes. With a robust construction and a net weight of 15.5 pounds, this assembly is built to withstand the high demands of heavy vehicle operation. The assembly's dimensions provide a perfect fit for various brake configurations, guaranteeing optimal performance and reliability. Its thoughtful design ensures that even under extreme conditions, it maintains structural integrity and functionality. For those seeking high-quality Bendix OEM parts, Source One Parts Center is the go-to source, providing genuine components for peace of mind on the road.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
15.5 lb
