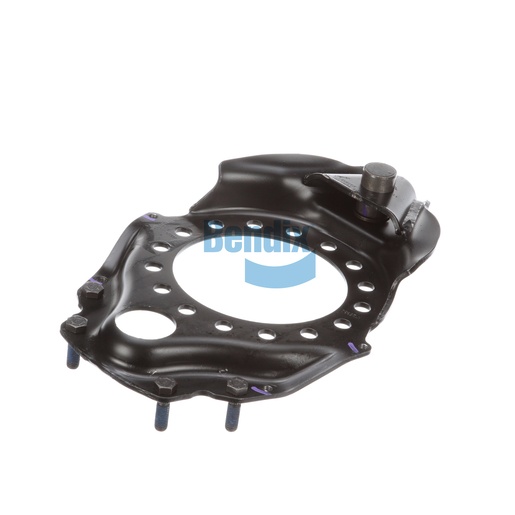

K125330N
Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider/Pin Assembly is an essential part of the foundation drum brake system, providing crucial support and stability under extreme braking conditions. This assembly is engineered for durability and ease of installation, ensuring that your braking system functions optimally. Weighing in at 10.82 lb, it features a sturdy construction that can withstand the rigorous demands of commercial trucking applications. The precision design allows for a secure fit, helping to maintain brake performance over time. For those who need quality and reliability, Source One Parts Center is the best destination for genuine Bendix OEM parts, ensuring your commercial vehicles are equipped with top-notch components.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
10.82 lb
