K125380N

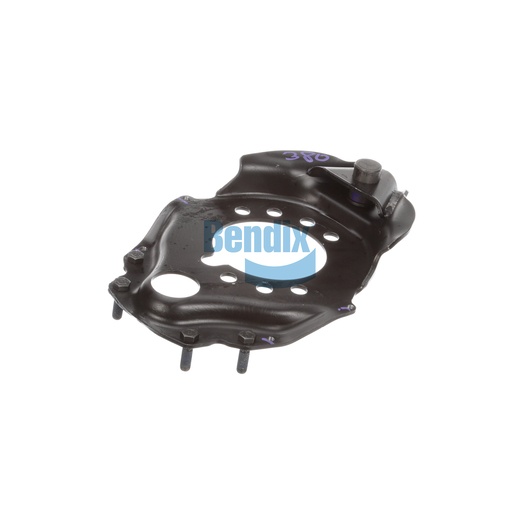

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly by Bendix is an integral part of the braking system, providing critical support for the brake shoes in foundation drum brakes. This assembly is designed with precision to ensure accurate alignment and effective brake operation, which is essential for maintaining vehicle safety. With robust construction and reliable materials, this assembly can handle the demands of heavy-duty applications, offering durability and longevity on the road. Ideal for both maintenance and upgrades, the Spider / Pin Assembly is essential for any fleet operator. Source One Parts Center is committed to delivering genuine Bendix OEM parts, ensuring you receive the best products for your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.7 lb
