K125381N

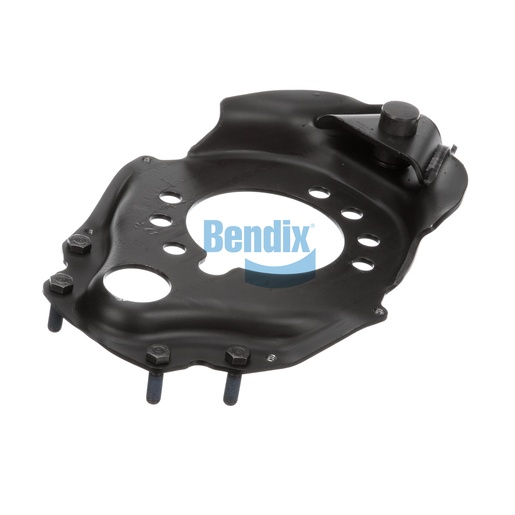

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Spider / Pin Assembly is an essential part of your commercial vehicle's foundation drum brake system, providing crucial support and stability. This assembly weighs 5.3 kg and is built to endure the demanding conditions of heavy-duty use, ensuring your truck remains safe and reliable on the road. With dimensions of 304.0 mm in width, 408.0 mm in height, and 148.0 mm in length, it is designed for easy installation and compatibility with various models. Its robust construction and precise engineering help maintain the integrity of your braking system, reducing the risk of failure and enhancing overall vehicle performance. When it’s time to replace worn parts, choosing a high-quality assembly like this is key to maintaining safety and efficiency. Source One Parts Center is the top choice for genuine Bendix OEM parts, ensuring you receive only the best for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Length
148.0 mm (5.83 in)
Width
304.0 mm (11.97 in)
Height
408.0 mm (16.06 in)
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.65 lb
